Dynamic 5 axis water jet cutting machine
Información básica
Modelo: L-2515/D5
Descripción del producto
Product Description
Dynamic 5axis water jet cutting machine
In the stone cutting industry,this product can create perfect stone medallions in a single operation.
When applied in the metalworking industry,it can perform vertical cutting,and also enable taper compensation by adjusting angles,thus making a finished edge completely vertical.
If you want a tool for both stone medallion and metal fabrication applications,this water jet cutter will be your best choice.
Technical Parameter
|
CNC Water Jet Cutting Machine Parameter(L=Gantry type) |
|||||||
| Parameters |
Unit |
YCWJ-L1010 |
YCWJ-L2015 |
YCWJ-L3015 |
YCWJ-L3020 |
YCWJ-L2060 |
|
|
Efficient Cutting Area |
mm |
1000×1000 |
2000×1500 |
3000×1500 |
3000×2000 |
2000×6000 |
|
|
Axis Travel |
X |
mm |
1000 |
2000 |
3000 |
3000 |
2000 |
| Y |
mm |
1000 |
1500 |
1500 |
2000 |
6000 |
|
| Z |
mm |
150-180 |
150-180 |
150-180 |
150-180 |
150-180 |
|
|
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt
MITSUBISHI or Yaskawa
|
|||||||
|
Cutting Accuracy |
mm |
±0.1 |
|||||
|
Positioning Accuracy |
mm |
±0.2 |
|||||
|
X,Y Dry-run Speed |
m/min |
0-15 (if need 30m/min speed,we can do as request ) |
|||||
|
Cutting Speed |
m/min |
as to detail material and thickness |
|||||
Water Jet Platform
How is our YC waterjet cutting platform made?First step is heating treatment which achieve stress relieving,second step is Sand-blasting which is made on the water jet cutting table to remove the oxidation layer.Then the surface of abrasive water jet cutting table will be cleaner with higher roughness, enhancing the adhesiveness of painting on the platform of high pressure water jet machine.
Cutting Head
This Dynamic 5 axis water jet cutting machine is specially used to cut marble and granite, it can compensate ±10° cutting angle. It is one kind of bevel cutting machine.
Due to the water jet cutting is a flexible cutting, therefore,there will be a certain degree of inclination on the product cross section after cutting by the traditional 3 axis water jet cutting.In order to ensure the accuracy of vertical cutting section, it must reduce the cutting speed. However, our 5 axis water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the cutting angle, without reducing the cutting speed. So that it can be used for cutting parquet stone, the parquet flooring does not need to be polished again, which can save time and labor.
Dynamic 5 axis cutting head X、Y、Z axis for transmission A,B axis for compensation 0°-±10°
Water Jet High Pressure Pump
The whole waterjet pump is made in USA-Hypertherm Waterjet.
Available in three power levels, Echion™ 15, 30, and 50 Waterjet Pumps deliver consistent cut quality at optimum cutting speeds and a design that simplifies service so maintenance is faster, easier, and less expensive. At the same time, Echion pumps include features like fully integrated cooling for a smaller footprint that enables easy integration into small spaces.
REQUEST INFORMATION
Water Jet CNC Controller & Software

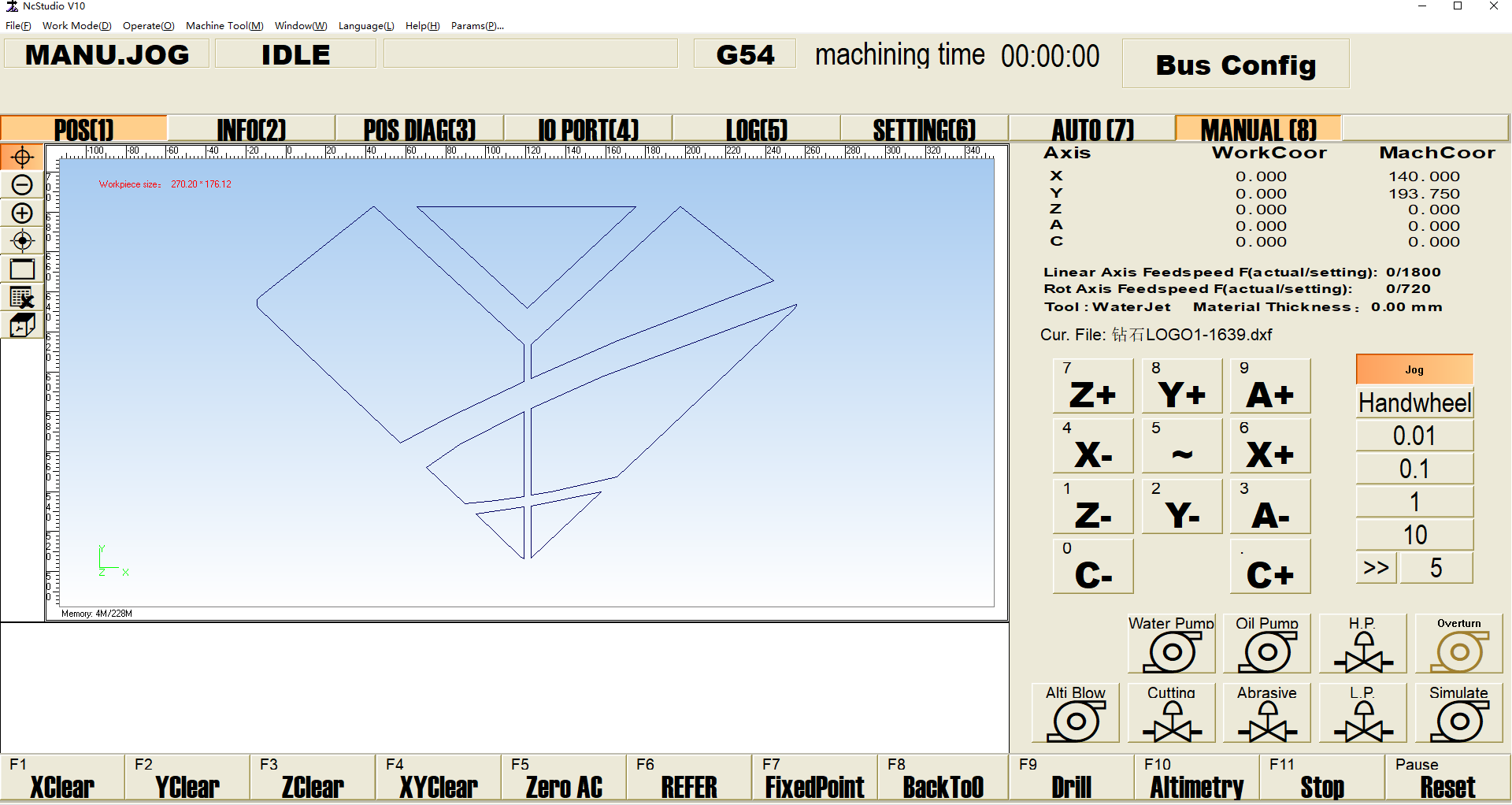

NcStudio is a fast, user friendly, easy to learn waterjet controller software. Its advanced capabilities allow you to reliably waterjet cut quality parts efficiently.
With PM95A control card(WEIHONG) and high performance industrial computer(ADVANTECH).
REQUEST INFORMATION
YASKAWA SERVO DRIVER & MOTOR-Σ7
The increased power demands of large automation components utilize the robust performance of SGM7G.
These servo motors are built with a compact footprint, yet provide a higher torque while maintaining an inertia rating well within the medium range.
REQUEST INFORMATION
Auto abrasive delivery system & Cooling system
Abrasive delivery system Air cooler Water chiller(optional)
Optional Accessories
Auto sludge removal system
Remove the abrasive from the tank automatically, separate the abrasive and water.
Reduce the labor force,improve work efficiency.The absorption pump sucks up the mixture of sand and water from the tank into a collection box when it works.There are plastic woven filter bags in the collection box,water is recycled to the machine tank, sand and the mixturefrom cutting are collected into filter bags Inside. So as to achieve the purpose of automatic collection to make it easy to clean.
water Soften System Hydraulic Loading System Cutting head with Drilling
Related Products
Dynamic 5axis Waterjet Machine 3 axis Waterjet Cutting Machine Max5 axis Water Jet Cutting Machine
（Bevel Cutting 0-±10°） （Bevel Cutting 0-±45°）
Multi- head Cantilever Type Robotic Waterjet
Cutting Samples
Glass Cutting Metal Cutting Stone Cutting
Composite material cutting Leather cutting Crystal Cutting
Sales Service
|
